TR080.0380BR4100
easy installation
easy adjustment
rustproof
Alfatec package
Products can also be added individually as accessories

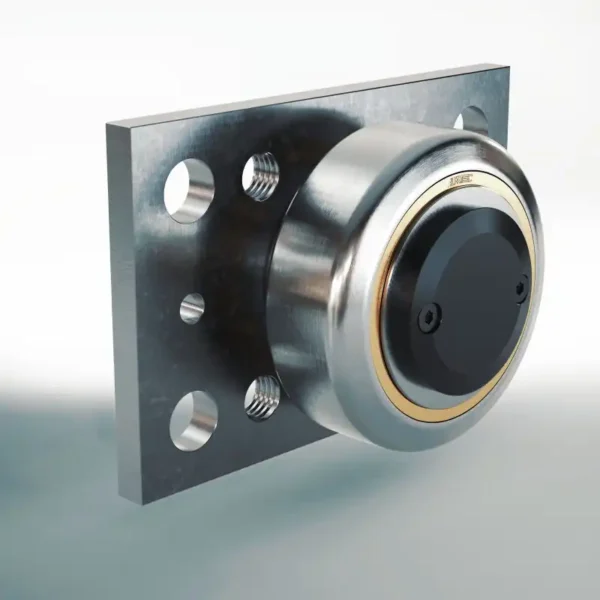

TR080.0380BR4100 Tiger rollers standard – Radial castor with chrome coating with rectangular fixing element
The ALFATEC Tiger roller with a diameter of 77.1 mm has an adjustable glide piece. Axial guidance is provided by an oilamide sliding block. The weld-in stud is made of stainless steel (1.4301). The outer ring is chrome-plated and is therefore protected against corrosion. Spacer rings are used to adjust the axial play. Thanks to its combined design with radial and axial guidance, the Tiger roller requires hardly any installation space and impresses with its robustness and high load capacity of up to 12.87 kN radially and up to 5 kN axially.
The Tiger roller TR080.0380BR4100 at a glance:
- Protected against corrosion
- High load-bearing capacity at standstill in axial direction
- Axial play adjustable via spacer rings
- Simple adjustment
- Lubricated for life
A guide profile is also required for each Tiger roller. The matching guide profile is UP080.0780.
It is welded to a rectangular fastening element, which enables simple installation by screwing on. Fastening elements are available in different versions – including TR080.0380BQ4000.
The rectangular spacer elements BR080.4505 with 0.5 mm material thickness and BR080.4510 1.0 mm material thickness are suitable for adjusting the assembly.
Our DR080.4905 and DR080.4910 spacer rings make it easy to adjust the axial guide roller.
ALFATEC also offers the Tiger roller in different sizes.
sizes
for low and high loads.
The Tiger castor is available in
stainless steel
and is available in many other series.
Properties
Adjustable axial
yes
Diameter (mm)
77,10
Series
80
Material
Stahl
Total height (mm)
54,50
Load capacity
Radial load capacity / FR (kN)
12,87
Load capacity axial / FA (kN)
5,00
C (kN)
48,00
C0 (kN)
56,80
