TR080.0200BQ1000 Tiger rollers standard – Axial castor fixed with fastening element square
The ALFATEC tiger roller with fixed axial roller with a diameter of 77.7 mm has proven to be our standard castor. Due to its combined design with a radial and axial guide, the Tiger roller requires hardly any installation space and impresses with its robustness and high load capacity up to 12.87 kN radially and up to 5.00 kN axially.
The Tiger reel TR080.0200BQ1000 at a glance:
- Easy to install
- long-lived
- Maintenance
In addition to each tiger role, a leadership profile is required. The appropriate guide profile is UP080.0700.

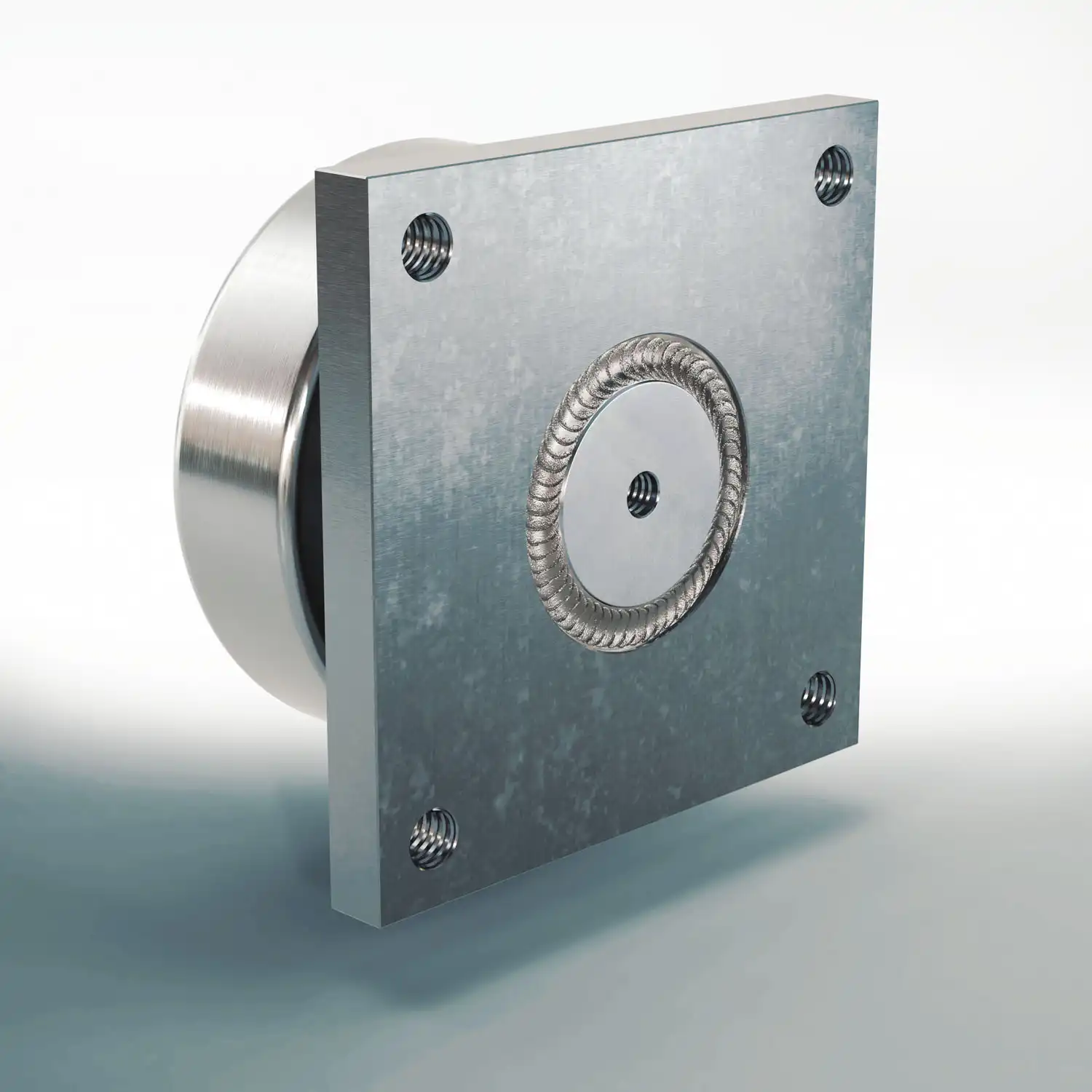

It is welded to a square fastening element, which enables simple installation by screwing it on. Fastening elements are available in different versions – including TR080.0200BR1100.
The square spacers BQ080.1405 with 0.5 mm material thickness and BQ080.1410 1.0 mm material thickness are suitable for adjusting the assembly.
In addition, ALFATEC offers the tiger roller in different
sizes
for low and high load capacities.
The tiger roller is available in different variants such as
adjustable axial roller
or
high-temperature version
and in many other series.
Properties
Adjustable axial
yes
Diameter (mm)
77,70
Relubricatable
yes
Series
80
Material
Stahl
Total height (mm)
51,50
Load capacity
Radial load capacity / FR (kN)
12,87
Load capacity axial / FA (kN)
5,00
C (kN)
48,00
C0 (kN)
56,80
C0a (kN)
18,00
Ca (kN)
18,00
